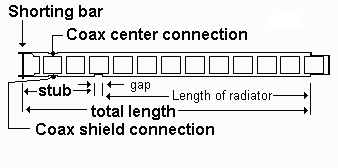

<html> <head> <TITLE>J-Pole Information File, by KE3FL</TITLE> <script language='JavaScript' type='text/javascript'> <!-- // ------------------------------------------------------------------- // This function puts together two strings into an email address // inputs: two email address strings // output: nothing // Action: none // return: complete email html line // ------------------------------------------------------------------- function MailTxt(add2, add1) { var atsign = "@"; var dotcom = ".com"; return(document.write(add1+atsign+add2+dotcom)); } // --> </script> </head> <body bgcolor="#DDDDFF"> <a name="BGN"><br> <center><IMG SRC="CS2.JPG" ALT="CS Logo"> <font size=7> J-Pole Antenna Help Information</a> </font><br> <font size=5> by Phil Karras, KE3FL <br> </font> </center> <br><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A> <br><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</A> <br><br> Go to: <A HREF="../prgms/J-Pole.htm">The Jpole Program</A> <br><br> Go to: <A HREF="#KIT"> order the J-pole antenna kit </A> ($11 + $7 shipping/handling/PayPal) <br><br><br> <font size=5> Sections you may jump to: </font> <br> <font size=5>|</font> <A HREF="#SWR">Lowering the SWR</A> <font size=5>|</font> <A HREF="#FRQ">Shifting the Frequency</A> <font size=5>|</font> <A HREF="#BW">Increasing the Bandwidth</A> <font size=5>|</font> <A HREF="#BLD">Building an Emergency J-Pole</A> <font size=5>|</font> <A HREF="#VF">Velocity Factor Information</A> <font size=5>|</font> <A HREF="#KIT">J-pole Kit</A> <font size=5>|</font> <A HREF="#PRGM">J-pole Program</A> <font size=5>|</font> <A HREF="../gif/jpole-tv.gif">TV Twin-lead J-pole</A> <font size=5>|</font> <br><br><br><br><br><br><br> <pre> <font size=+2> <strong><a name="SWR"> HELP FOR LOWERING THE SWR, CHANGING THE FREQUENCY, AND INCREASING THE BANDWIDTH</a></strong></font> Return to: <A HREF="#BGN">Beginning of this file</A><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</a> <br><br> Go to: <A HREF="../prgms/J-Pole.htm">The Jpole Program</A> SWR: To measure the SWR correctly you should make sure that there is no RF on the coax. One test is to see if the SWR changes when you use different lengths of coax. (Don't use a full electrical wavelength since this will hide any problems by simply moving you to another point that is equal to the present measuring point.) We supply 20 feet of coax in the KE3FL J-pole kit because the best readings are obtained when the antenna is 2 wavelengths away from all objects. 2 WL of 146 MHz is about 13.5'. The antenna should be 13.5' up, and away from all other objects. (1 m = 39.37" = 3.28'). Don't forget to take into account any coax used INSIDE the PVC pipe if you are building the J-Pole inside PVC. | The velocity Factor for RG-58 is 0.66, the wavelength is: WL = c/f, | | c = 3E8 m/s, and f = 146 MHz = 1.46E8 cycles/s ==> 3E8/1.46E8 = 2.05 m | | 1/2 WL = 1.03 m, (.66)1.03 m = 0.68 m ==> 26.70" == > 2.22' and 9*2.22 | | = 20.02' ==> 20' 0.26" (NOTE: 9*2.22 = 19.98' because I was only | | reporting 2 places but I was keeping more digits in the calculator.) | If you are unable to find a match point for an SWR of 1:1 no matter where you place the contact points of the coax on the J-Pole, try adding a bit more length to the bottom end of the antenna. This will extend the distance between the shorted end of the antenna and the coax contact points. (For 2 meters, I add about 1 inch.) Then, place the coax contact points back to where the program said they should be. Move the shorting bar up and down until you find a place where the SWR is 1:1 (or as low as you can get it) at ANY frequency. Once this point has been found, move the coax contact points AND the shorting bar together until you can center the lowest SWR at your desired frequency. EXAMPLE: change: +---c-------------------------------------------------------- | +---s------------- ---------------------------------------- to: +-+-*---c-------------------------------------------------------- | |--- shorting bar +-+-*---s------------- ---------------------------------------- Return to: <A HREF="#BGN">Beginning of this file</A><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</a> <font size=+2> <strong><a name="FRQ"> SHIFTING THE J-pole FREQUENCY</a></strong></font> Return to: <A HREF="#BGN">Beginning of this file</A><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</a> If you need to shift the frequency and moving the Tap point and shorting bar together doesn't change it enough, you can cut the J-Pole (hopefully you don't need to add wire). See the calculation screen for the expected frequency shifts for the length listed. This is the length change to the STUB. You will have to remove/add three times that amount to the radiator. ========================================================================== ||* WARNING * WARNING * WARNING * WARNING * WARNING * WARNING * WARNING *|| || ------------------------------------------------------------------- || || When cutting the antenna shorter, I recommend making only HALF the || || change you may need. In this way you may be able to prevent making || || too large a change and having to undo it. || ========================================================================== All changes are interactive! Some more so than others, but expect to see SWR changes for length changes, and frequency shifts when moving the shorting bar up and down. Return to: <A HREF="#BGN">Beginning of this file</A><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</a> <font size=+2> <strong><A name="BW"> HELP ON INCREASING THE BANDWIDTH (BW)</a></strong></font> Return to: <A HREF="#BGN">Beginning of this file</A><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</a> The first thing to check if you have a narrow bandwidth (BW) is the coax connection. If this connection is not long enough the BW will be narrow. The connection should be at least 1/2 inch long, and one inch is fine. Making it longer than one inch won't help matters. This will only help a little. If the coax connection is OK, within the above range, then the narrow BW is an indication that the antenna is too long. In my experience, a BW of 3.0 to 3.5 MHz indicates that the coax connection could be longer, but a BW of less (I've even seen a BW of 0.6 MHz!) indicates that the antenna is too long. For the above case (0.6 MHz BW) I shortened the antenna by 1.0 inch. I only removed this from the top of the antenna, not from the stub section. This brought the BW up to 4.0 MHz. Since I had to move the coax tap point to bring the SWR to 1.0 at 146.0 MHz the BW went down to 3.8MHz. Still, not bad and I left it at that. (I measure the BW between SWR of 1.7:1 points. I have built one wire J-pole with a BW of 4.0 MHz between SWR points of 1.2:1. This takes much time and experimentation to accomplish, this antenna took me three days to complete, about 9 hours of work. If you really want to do this, take very good notes and measurements so you can always return to where you were.) Also remember that a good dummy load has an SWR of 1:1 for a bandwidth of 100 MHz or more. The object here is not to make a dummy load but a radiating antenna. Return to: <A HREF="#BGN">Beginning of this file</A><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</a> <font size=+2> <strong><A name="BLD"> Building an Emergency J-Pole by KE3FL</a></strong></font> Return to: <A HREF="#BGN">Beginning of this file</A><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</a> This type of J-Pole was written about in QST magazine in 1994. The description has appeared in many of the local club letters. The J-Pole is not difficult to make, even for beginners. You will need to have some experience in soldering and in stripping wire without cutting through the wire. This antenna works well on 2-meters and also works on 440 MHz. I recommend that you read all of these instructions BEFORE beginning your construction project. Nothing is more frustrating than doing something only to find a hint afterwards that would have made the project go smoother. <b>PARTS LIST:</b> ~5 feet of ladder line (for the antenna) ~20 feet of coax BNC connector ~ 2" of Heat shrink tubing Building and tuning instructions Plastic carry bag (if available) <A HREF="#KIT"><font size=+2> J-pole Kit </A></font> The KE3FL J-Pole kit has the above parts plus a carry bag. <b>TOOLS YOU WILL NEED:</b> soldering iron (20 to 30 watts) and solder wire cutters wire strippers 2-meter SWR meter (or analyzer) sharp knife pliers and a wrench to fit the BNC pieces RTV glue <font size=+1> <strong> MAKING THE 2-METER/440 J-POLE </strong> </font> NOTE: I use a sharp knife to cut into the insulation and not into the wire. Then I pry the wire out with a pin and snip it or solder it at the correct location. Using ladder line is a bit different than using the solid TV twin-lead wire. Before cutting, stretch out the wire so that you can position the proposed cuts at a position that has center plastic support, and not at a position that has no center plastic. This may not be possible for both the 1/4 section and the total length position. I recommend selecting the support at the top if you must choose. This plastic melts well and can be melted back together. I have had to melt sections back together in both locations and the antennas work just fine and hold up to field rigors, but melting one section together is less time-consuming than melting both. Select the bottom of the antenna and strip off about 3 - 3 1/2" of insulation from both wires. Solder a shorting bar about 1" from the bottom of the antenna. (This bar may need to be moved.) The coax will be connected about 1 1/4" from the shorting bar to begin with. Again, this connection and the shorting bar may have to be moved in order to optain the best SWR and frequency match. Diagram: +-- coax connects here, <strong><font color="#D90606">C</font></strong>enter, <strong><font color="#D90606">S</font></strong>hield | +---<font color="#D90606">c</font>-------------------------------------------------------- | +---<font color="#D90606">s</font>------------- ---------------------------------------- | | | +- tap +- gap | |+------stub------+|+--length of radiator-------------------+| Measure 17" up from the bottom on ONE END ONLY and cut a 1/4" gap in the wire at this position. (You can melt the plastic back together at this location if needed.) Now measure 52.25" up from the bottom. If this location has no center plastic support, try to remove as little insulation as needed in order to get at the wire and snip it. Cut out at least one inch of wire, then melt the plastic back onto the locations where you removed it. <font size=+1> <strong> PREPARING THE COAX </strong> </font> NOTES: Bend the coax about one inch from the end and score the insulation with a sharp knife. This cuts into the insulation without damaging the shield if done gently. Then rotate the coax so you can continue scoring the coax until it is cut all the way around. Cut the insulation from the new cut to the end of the coax. You should now be able to pull off the insulation with pliers. Remember to always cut AWAY from yourself! NEVER use wire strippers on the large portion of the coax; it only damages the shield. If you have a tool designed for coax, use it. Prepare one end of the coax as stated above in the notes. Then, separate the coax shield and twist it together. Now strip off about 3/4" of insulation from the center conductor of the coax. (DO NOT SOLDER at this time.) Tie a gentle knot in the coax about a foot or two away from the other end of the coax. This will keep the BNC parts from traveling all the way down to the other end & off again. Slip on the nut, washer, and rubber piece. Now, prepare this end as stated above in the NOTES section. Push the tapered metal piece from the BNC package onto the coax so that the taper is towards the end of the coax and the piece stops at the large insulation. Fold the shield back over the tapered piece and cut off all shield that folds back beyond the piece. Strip off 3/4" or more of insulation from the center conductor and tin (solder) this wire. (NOTICE the instructions that come with the BNC connector and make the measurements as stated there if there is a conflict with these instructions.) Poke the center conductor into the gold BNC center connector and see how far it goes. Then cut off all the extra center conductor (wire) so you have just enough wire left to fit into the BNC center connector. Tin this center wire. (To tin is to Melt some solder on it.) Locate the hole in the side of the BNC center connector and rotate it up so you can see it. Slip the center conductor into the wire and place the soldering iron on the tip of the center connector. Feed solder into the hole on the center connector. When some melts (and this won't take long), remove the solder and slip the soldering iron off the tip. DO NOT pull the soldering iron away from the tip as this will pull the tip right off the center conductor in most cases. (There is usually some solder on your soldering iron tip. This will attract the BNC tip just enough to pull the BNC tip off the wire if you pull the soldering iron tip away from the BNC tip.) NOTE: If the tip does not have a hole in it, then use solder that fits into the tip, cut off a small amount and slip it into the tip, then push the center conductor wire into the tip after the solder. Now follow the melting instructions above, when the wire slips all the way in the solder is melted and you can slip the soldering iron off the tip. Push the tip into the BNC body, push all the other BNC parts up to the body, and screw then together. Use tools here so that you can tighten the parts together. <font size=+1> <strong> CONNECTING COAX TO ANTENNA </strong> </font> Wrap the shield 1.25" up from the bottom around the 17" side of the twin lead. Wrap it in such a way that the distance from the coax to the wire is the same for both the shield and the center conductor. Solder the shield and twin lead wire together. Wrap the center coax conductor around the longer twin lead wire up from the bottom, the same distance that the shield is wrapped to the other wire, and solder it. Cut off the extra coax wire. Also, cut off all the excess twin lead at the top except for a loop or two. These ladder steps are great for hanging the antenna over a nail or hook, so leave at least one of them. Your antenna is now ready to test. Get your SWR analyzer or meter. Hang the antenna away from all objects (I hang mine from the top of a window and this seems to work almost as well as from a tree.) NOTE: For best SWR measurements the antenna should be at least 2 wavelengths away from any object. (For 2-meters this is 4 meters or about 13 feet - 4 yards and one foot.) Set your radio for lowest power and 146.000 MHz simplex. Test out the antenna for 144.000 and 148.000 as well. If all three are below 1.7 SWR and the SWR for 146 is about 1.2 or lower, you are done. If not, see the (Help SWR, frequency, & BW) section of this program. (shorten the antenna = shorter wavelength = higher MHz) Once you are done, slip the shrink tubing onto the antenna over the coax connections, squirt some RTV into the bottom of the shrink tubing, and then heat up the tubing from the bottom up. This should push (squeeze) some RTV all the way to the top of the shrink tubing. Wipe off the excess and hang the antenna for 12 to 24 hours to let the RTV dry. <font size=+1> <strong> NOTES </strong> </font> The SWR at 146.0 should be close to and below 1.3 to 1, for 144.0 and 1484.0 it should be 1.7 to 1 or lower. If you have difficulty obtaining these results, see the (Help SWR, frequency, & BW) section of this program. At 445.0 MHz the antenna should read below 1.5 to 1. I have not checked it out as completely as I have 2 meters. Good-luck and let me know of any ideas you have for improvement to this design. 73, Phil/KE3FL P.O. Box 74 AEC Carroll County, MD Mt. Airy, MD 21771 Return to: <A HREF="#BGN">Beginning of this file</A><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</a> <font size=+2> <strong><A name="VF"> Velocity Factor</a></strong></font> Return to: <A HREF="#BGN">Beginning of this file</A><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</a> Most of the time we find that the antenna does not tune up on the desired frequency. This is generally because the wire is not the same as the wire used for the initial calculations. It may also be that we simply do not know what the velocity factor (vf) is for the wire we are using. The best thing to do is guess at the vf, use: .83 or .84. Build the antenna as specified, then find where it is tuned and use that information to calculate the vf for your wire. This should work IF your SWR is 1.3:1 or better, but it will be suspect if it is larger. Other factors are interacting if the SWR is not good. That said, the equation to used is: vf = 4*stub*f/(factor) where vf = velocity factor stub = stub length (in appropriate units) f = frequency (in MHz) factor = appropriate numeric factor (11811 or 30000) Return to: <A HREF="#BGN">Beginning of this file</A><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</a> <font size=+2> <strong><A name="KIT"></a> KE3FL J-POLE Kit </a></strong></font> This kit includes: ~5 feet of ladder line (for the antenna) ~20 feet of coax BNC connector ~ 2" of Heat shrink tubing Building and tuning instructions Plastic carry bag (if available) Cost: $11 + MD state sales tax + $7 shipping, handling, & PayPal fees. Please make checks payable to: Circle Software and send them to: P.O. Box 74 Mt Airy MD 21771 Or, you can send me payment via PayPal <a href='https://www.paypal.com/cgi-bin/webscr'><img src='paypal.gif' alt='Paypal' /></a>, my account is: <font color='#00aaff'><b> <script language='JavaScript' type='text/javascript'> <!-- MailTxt('yahoo', 'ke3fl'); // --> </script> </b></font> That's KE3FL but all lower case. <br> (Don't forget to include contact/<b>email</b> and shipping information, thanks.) Return to: <A HREF="#BGN">Beginning of this file</A><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</a> <font size=+2> <strong><A name="PRGM"></a> J-POLE Design Program</a></strong></font> <A HREF="../ftp/JPOLE.ZIP"><font size=+1>[Click Here]</font></A> to download the Zipped program and its associated files. The file name is: <fint size=+1><strong>JPOLE.ZIP</strong></font> You will need to use PKUNZIP to extract the needed files. I suggest doing so in a new sub-directory. Let me know how it works for you by sending me an e-mail message. If you enjoy this program and would like to support my efforts in this area you may do so by sending a small donation. No donations are expected from non-profit teaching institutions or individual casual users. Donations are expected from for-profit organizations and individuals. Donations of $10 for this program are greatly accepted :) <font size=+1><font color="#D90606"> Please indicate which program you are making a donation for, thanks. </font></font> Please make checks payable to: Circle Software and send them to: P.O. Box 74 Mt Airy MD 21771 Or, you can send me payment via <a href='https://www.paypal.com/cgi-bin/webscr'><img src='paypal.gif' alt='Paypal' /></a>, my account is: <font color='#00aaff'><b> <script language='JavaScript' type='text/javascript'> <!-- MailTxt('yahoo', 'ke3fl'); // --> </script> </b></font> That's KE3FL but all lower case. <br> (Don't forget to include contact and shipping information, thanks.) (end of this file) Return to: <A HREF="#BGN">Beginning of this file</A><br> Return to: <A HREF="../index.html#LIST">KE3FL home page</A><br> Return to: <A HREF="../LINKS.HTM#SALE">For Sale or Swap Page</a><br> Go to: <A HREF="../prgms/J-Pole.htm">The Jpole Program</A> </font></pre> </body> </html>
